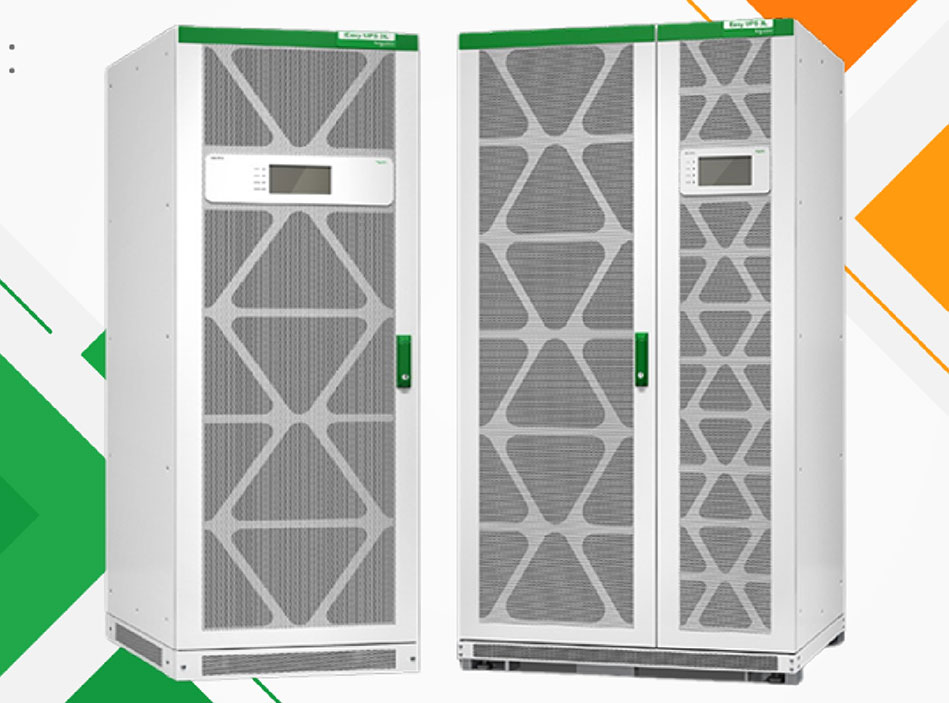

Uninterruptible Power Supply by
Schneider Electric India in partnership
with Tricolite - an eminent innovative and technology-driven company,
specializes in UPS battery backup systems that can be used for wide variety of
applications, be it computer rooms or even large data hubs, while
offering top-notch industrial plant protection.
Each product is propelled by an uninterruptible power supply or voltage
conditioning technology for every situation- from minimum KW to
applications of multiple MW to a considerable range of supply voltages. Listed
below are our unique ranges of industrial and server UPS systems that offer the
best battery backup.
| KVA RATING | 10 KVA – 600 KVA Standard modules |
| INPUT VOLTAGE | 380/400/415 V (Three-phase + Neutral + PE |
| NOMINAL OUTPUT VOLTAGE | 380/400/415 V |
| PARALLEL OUTPUT | Minimum 4 UPSs for capacity |
| FREQUENCY | 40 – 60 Hz |
| INPUT POWER FACTOR THD-I | MORE THAN 0.99 I LESS THAN 3% at full linear load |
| EFFICIENCY | 96% Online Mode, 99% ECO MODE |
| DUAL MAINS INPUT | YES -DEFALUT SINGLE MAINS INPUT |
| COMMUNICATION | RS485, dry contacts, Ethernet (SNMP, Modbus, TCP/IP) |
| CONTROL PANEL | Touchscreen LCD, status, and display console |
| MAKRING | CE |
| BATTERY TYPE | VRLA/LIB |
| PROTECTION CLASS | IP 20 |
| REGULATORY | Safety IEC/EN 62040-1 EMC/EMI/RFI IEC/EN 62040-2 Performance IEC/EN 62040-3 Environmental IEC 62040-4 |
- Reliable Battery Backup
- Voltage Regulation (Including AVR)
- 3Surge and Noise Protection
- Communication Ports / Remote Management
- Cooling Fans
- Data Line Surge Protection
- ENERGY STAR Certification
- Isolation Transformer
- LCD Control Panel
- Lithium Battery
- Muted Battery Alarm
- Modular
- Redundant design
- Low TCO for medium and large data centres
- Mission critical environments
