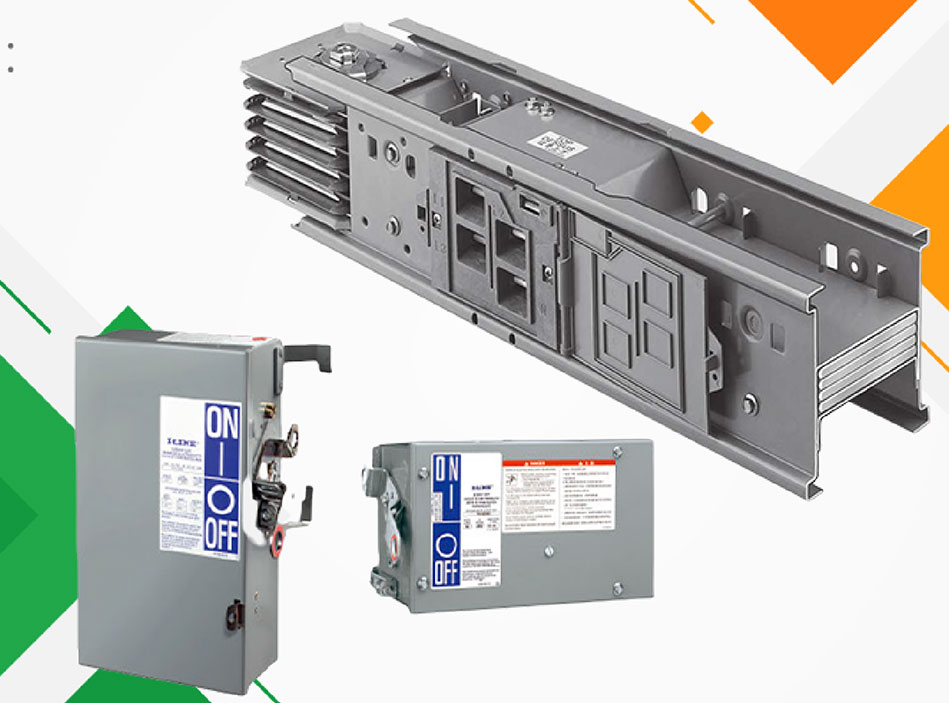

Tricolite is one of the top
Sandwich Bus Duct suppliers in India. Tricolite Sandwich Bus Duct System is
fully tested and certified according to the
requirements of standard IEC 61439-6: 2012. They are available in Current Rating
of 250A to 6300A in Aluminium and 400 A to 6300A in Copper.
A Bus Duct system is used extensively due to its convenient installation and
management compared to cabling and trunking. As the leading Sandwich Bus Duct
suppliers, Tricolite Sandwich Bus Duct System is accredited for quality by
DEKRA, a leading organization involved in testing and
certification of consumer, industrial, automotive, and ICT products.
Our Bus Duct Systems are available with the Ingress Protection or IP rating of
IP 40, 41, 54, 65 and 66 and Seismic Compliance of Zone-IV & V. We are the best
Sandwich Bus Duct suppliers in India. Our products has compact & flexible
design, offer good heat absorption, reduced loss of energy, and safe and secure
power distribution.
| APPLICATION | Termination between Equipment and Switchboard, Switchboard to Switchboard |
| REFERENCE STANDARD | IEC 61439 - Part 1 & 6 Aluminium - 250 A to 6300A Copper - 400 A to 6300A |
| CURRENT RATING | Canalis KS Range – 100A to 1000A Lighting BBT – 25A & 40A. Track Busway – 250A, 400A & 630A. |
| DEGREE OF PROTECTION | IP54 for Indoor I IP65 for Outdoor (With Canopy) |
| SEISMIC COMPLIANCE | Zone-IV & V |
| HOUSING | Electro Galvanized steel 1.5mm and Aluminium wrap around |
| TYPE OF INSULATION | Mylar / PET |
| INSULATION CLASS | Class B- 130°C & Class F- 155°C |
| QUALITY ACCREDITATION | DEKRA, CE, ASTA, UL, KEMA KEUR |
| HOUSING EARTH | Integral Earth |
| NEUTRAL SIZE | 50%,100%,200% |
| JOINTS & PLUG IN CONTACTS | Silver Flashed / Tin Plated |
- Compliance to seismic conditions
- Plug-in operation
- Compliance to ingress protection
- Compact structure: Sandwich bus ducts are more compact than cable systems
- Low maintenance: Sandwich bus ducts require low maintenance
- Low impedance: Sandwich bus ducts have low impedance
- Durable: Sandwich bus ducts are durable and can withstand challenging situations
- Easy to install: Sandwich bus ducts are easy to install and can be done quickly by two people
- Flexible: Sandwich bus ducts are flexible and can be easily relocated
- Electro galvanized housing: Sandwich bus ducts have an electro galvanized 1.6mm thick housing that provides better strength
- Epoxy powder coating: Sandwich bus ducts have an epoxy powder coating to prevent corrosion and atmospheric conditions
- Good voltage drop: Sandwich bus ducts have better voltage drop characteristics, even at low power factors
- Light weight: Sandwich bus ducts are about 40% lighter than cable systems
- Natural cooling: Sandwich bus ducts are naturally cooled
- Totally enclosed: Sandwich bus ducts are totally enclosed to ensure protection against dust accumulation and mechanical damages
- Operating voltage: Sandwich bus ducts have an operating voltage of 415 volts and withstand voltage of 10,000 volts
