Medium Voltage Products

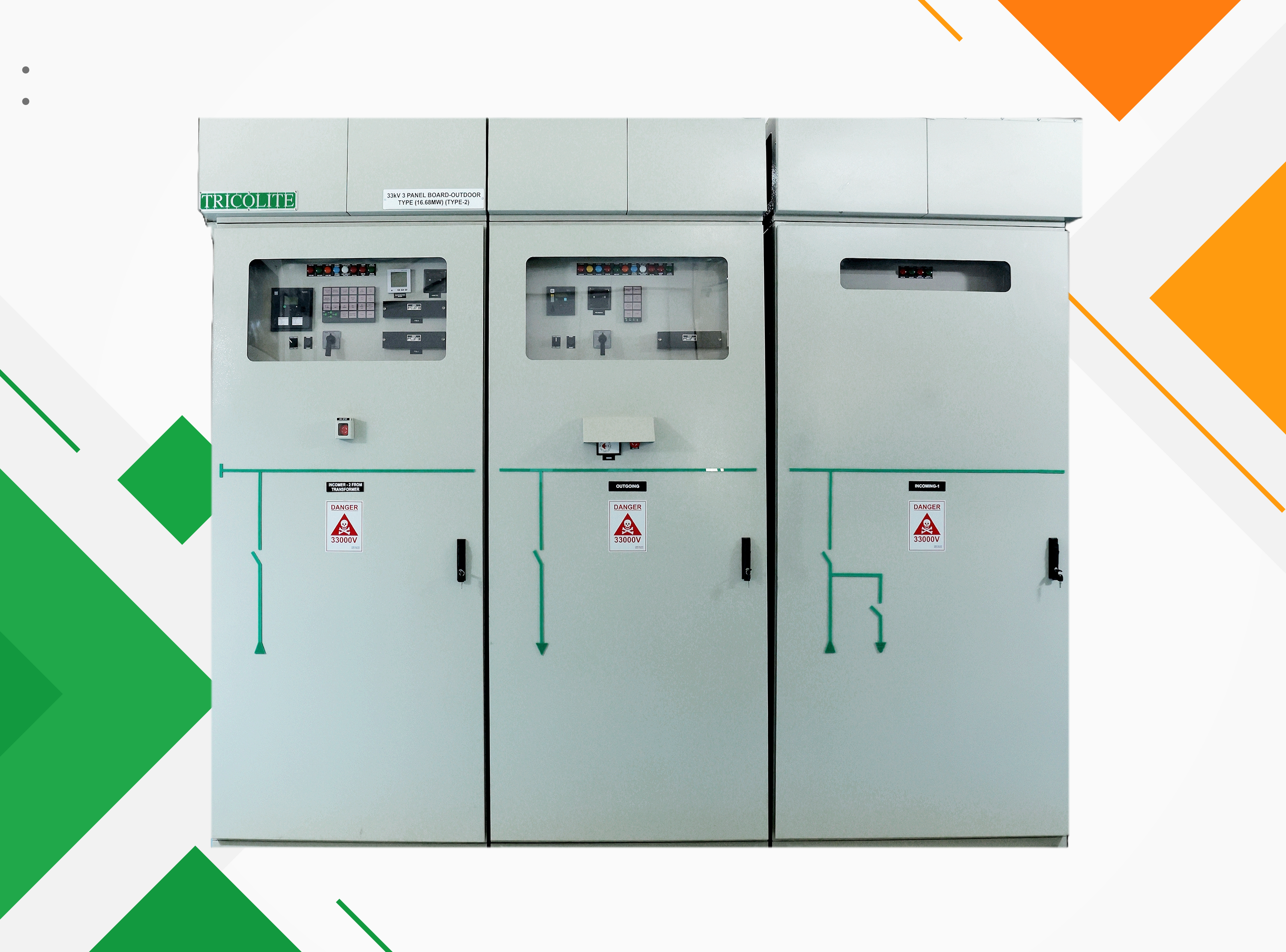

Tricolite’ s 33 KV Vacuum Circuit Breaker Panel complies with the
requirements of standard IEC 62271-200. Our best in class VCB panels are tested with
internal arc fault protection Internal AFLR at 31.5KA for 1 sec in all 3 chambers.
Tricolite is among the top Vacuum Circuit Breaker manufacturers in India due to the
unmatchable speed, reliability and ease of maintenance of its VCB panels. They are built
to provide exceptional resistance during premature electrical disturbances. They are
tested heavily for impulse, arch quenching, and temperature rise. Our unique designs
ensure protection from shock, vibration, corrosion, etc.
| APPLICATION | Control & Protection of Transformer, Feeder |
| REFERENCE STANDARD | IEC 62271- 1 & 200 |
| OPERATIONAL VOLTAGE | 33 KV |
| OPERATIONAL CURRENT | 1250 A, 1600 A, 2000 A, 2500 A, 3150 A |
| PHASE/ FREQUENCY | 3 Phase / 50 Hz |
| INSULATION LEVEL | 70 KV rms/ 170 KV Peak |
| SHORT TIME RATING | 31.5 KA for 3 Sec |
| PEAK WITHSTAND CURRENT | 80 KA Peak |
| DEGREE OF PROTECTION | IP-4X Indoor , IP-55 Outdoor |
| INTERNAL COMPARTMENTT | IP-2X |
| MAX. TEMP. RISE | 85°C |
| SPECIAL TEST | Internal Arc Certified AFLR at 31.5KA for 1 sec in all 3 chamberss |
- High performance
- Service continuity
- Space saving
- Safety
- Low cost of ownership
- Reduced installation time
- Intuitive guidance
- Smart switchgear management
