Medium Voltage Products

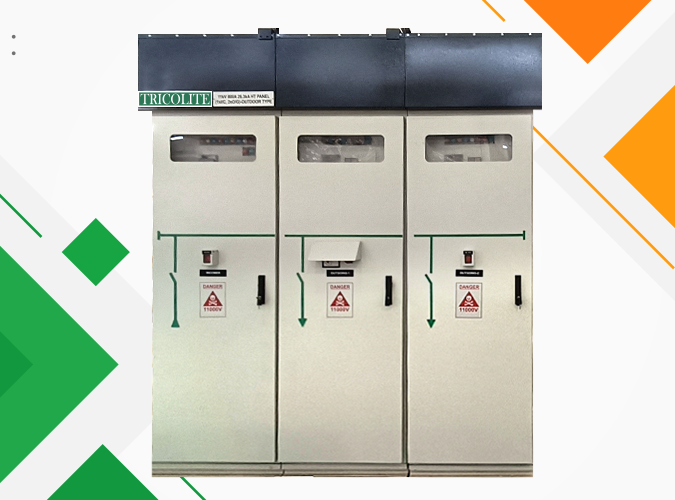

Tricolite’ s 11 KV Vacuum
Circuit Breaker Panel complies with the
requirements of standard IEC 62271-200. Our best in class VCB panels are tested
with internal arc fault protection Internal AFLR at 26.3 KA for 1 sec in all 3
chambers.
Tricolite is among the top Vacuum Circuit Breaker manufacturers
in India due to the unmatchable speed, reliability and ease of
maintenance of its VCB panels. They are built to provide exceptional resistance
during premature electrical disturbances. They are tested heavily for impulse,
arch quenching, and temperature rise. Our unique designs ensure protection from
shock, vibration, corrosion, etc.
| APPLICATION | Control & Protection of Transformer, Feeder |
| REFERENCE STANDARD | IEC 62271- 1 & 200 |
| OPERATIONAL VOLTAGE | 12KV |
| OPERATIONAL CURRENT | 630 A, 800 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A |
| PHASE/ FREQUENCY | 3 Phase/ 50 Hz |
| INSULATION LEVEL | 28 KV rms / 75 KV Peak |
| SHORT TIME RATING | 20/26.3/31.5/40 KA for 3 sec |
| PEAK WITHSTAND CURRENT | 50/66/80/110 KA Peak |
| DEGREE OF PROTECTION | IP-4X / IP-55/td> |
| INTERNAL COMPARTMENT | IP-2X |
| MAX. TEMP. RISE | 85°C |
| SPECIAL TEST | Internal Arc Certified AFLR at 26.3 KA for 1 sec in all 3 chambers |
- High performance
- Service continuity
- Space saving
- Safety
- Low cost of ownership
- Reduced installation time
- Intuitive guidance
- Smart switchgear management
