Low Voltage Products
Tricolite is one of the largest
Schneider Licensee Manufacturers of
Blokset range of OEM panels in the country. BlokSeT is a modular offer
of LV switchboards for electrical distribution up to 6300 A and for motor
control up to 250 kW.
Throughout all these years, Blokset technology has never ceased to
satisfy end-users in their search for optimized solutions for better, faster and
more economic production and panel-builders in their search for equipment that
is more reliable and easier to install and maintain.

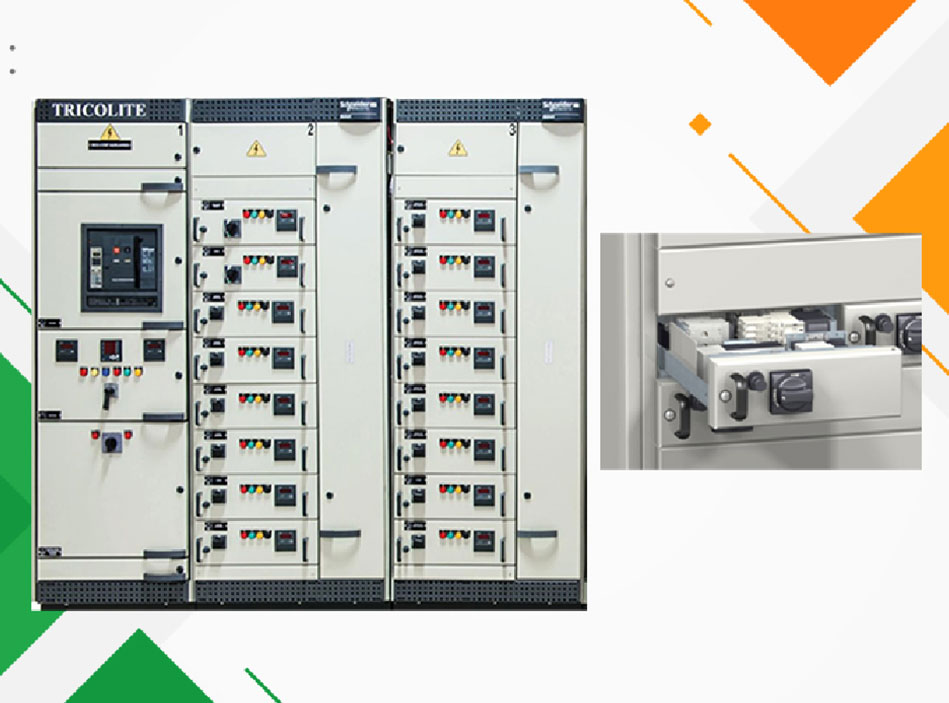

Today this evolution assumes concrete form with the emergence of
a new column dedicated to motor control known as "MW2".
| APPLICATION | Protection & Control of Motors |
| REFERENCE STANDARD | IEC : 61439-1:2011 |
| OPERATIONAL VOLTAGE | 415 V AC |
| MAX. OPERATIONAL CURRENT FOR DRAWOUT FEEDER | up to 630 A |
| PHASE FREQUENCY | 3 Phase/ 50 Hz |
| SHORT TIME RATING | Upto 85KA |
| DEGREE OF PROTECTION | IP:54 |
| MAX. TEMP. RISE | 40°C over ambient 45°C |
| FORM OF SEPARATION | 3b/ 4b |
| CONFIGURATION | Draw out |
| ASSEMBLY TYPE | MW2 |
-
People safety
Thermal monitoring/Internal arc containment and arc flash protection -
Power availability
Up to IP 54 protection degree for dusty and damp environments to ensure your continuous operation -
Sustainability
Green Premium product — non-hazardous material, designed for optimized recycling, and reduced carbon footprint and energy consumption.
