Low Voltage Products

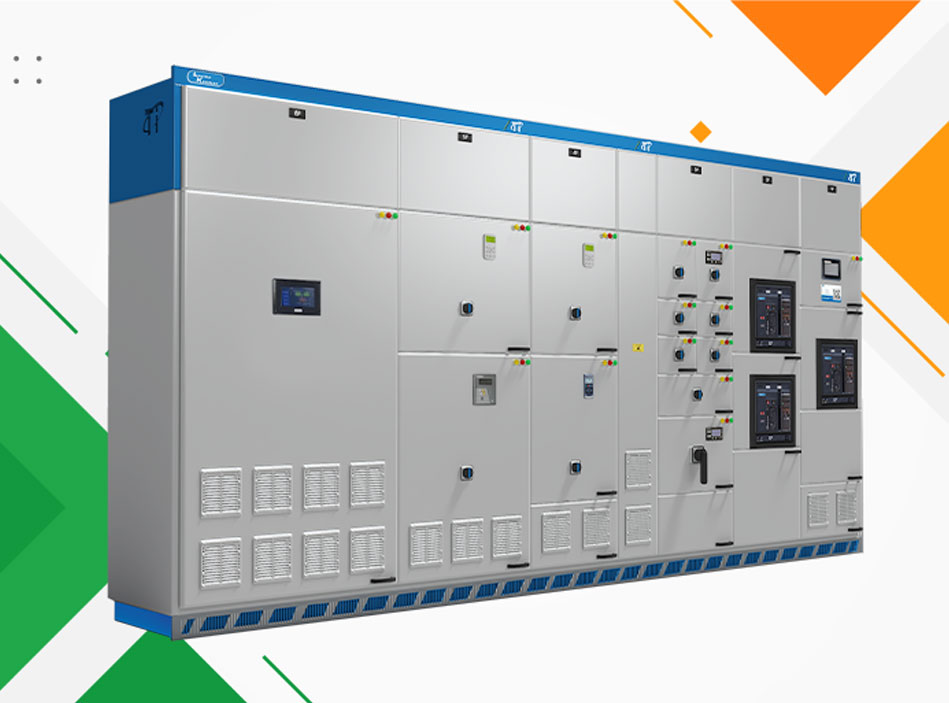

Ti is a range of low voltage
(LV) switchboards manufactured under
licensed partnership model between Tricolite & Lauritz Knudsen Electrical & Automation.
LK Ti is a range of main power distribution boards designed for safe power
distribution up to 5000A. The Ti range is IEC 61439 compliant and is
designed-verified to safeguard systems and people.
The new Ti range LV switchboards are design and verified with Aluminum and
copper busbars, providing the perfect balance of cost-effectiveness, compactness
and safety. Type-tested Ti switchboards are the perfect solution to optimize
processes and contribute to long-term profitability.
| APPLICATION | Protection & Control of Power Distribution |
| OPERATION VOLTAGE | 380-690 V AC |
| RATED FREQUENCY | 50 / 60 Hz |
| INSULATION VOLTAGE | 690 V |
| SHORTY TIME WITHSTAND | Up to 100 kA for 1 second |
| PEAK WITHSTAND | Up to 220 kA |
| RATED CURRENT (MAXIMUM) | Up to 5000A |
| CONFIRMING STANDARDS | IS8623, IS13947, and IEC 61439 |
| FORM OF SEPRATION | Form 3B, Form 4A, Form 4B |
| DEGREE OF PROTECTION | Up to IP 55 |
| HORIZONTAL BUSBAR POSITION | DB Panel type – A , AA, AB, B, BB |
| HORIZONTAL BUSBAR MATERIAL | Aluminum : Up to 6300A |
| CABLE ENTRY | Copper : Up to 8000A Top / Bottom |
- Compliance with the latest IEC standard IEC 61439 1&2
- Designed up to 5000 A
- Stringent fault withstand capacity up to 80 kA for 1 sec
- Double deck busbar system
- Ingress Protection up to 1P54 and IP2x after opening door
- Best in class insulation
- Adequate space for cabling
- Flexibility in busbar & cable entry
