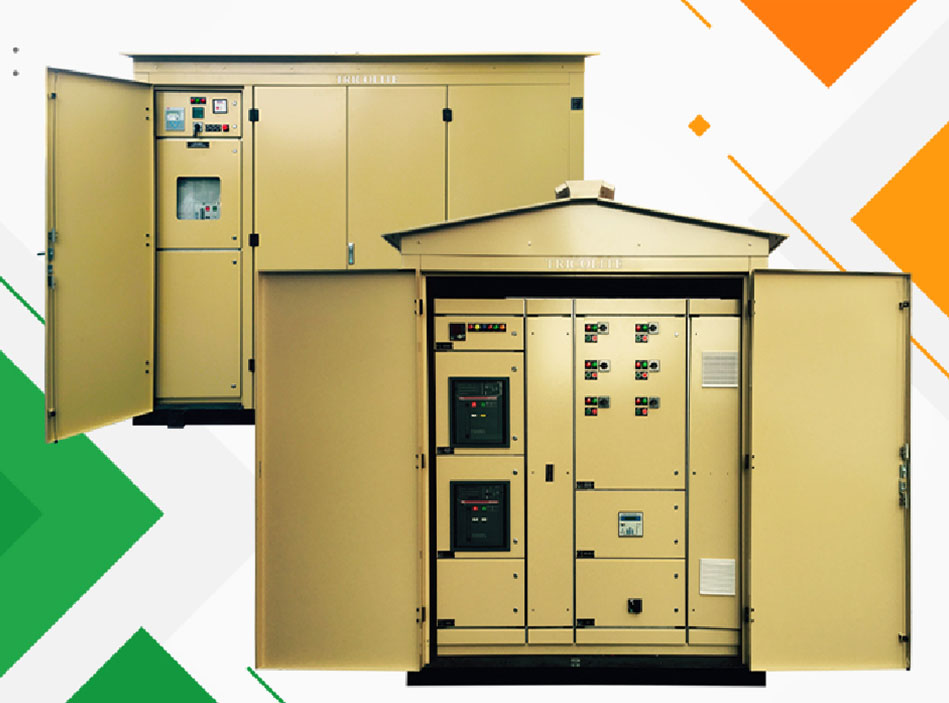

TPower is part of the wide range of product offerings from Tricolite Electrical
industries Limited. It is a compact MV/LV substation in
11 kV range for outdoor application, designed in line with
IEC 62271 - 202. It functions as a substation in secondary distribution networks.
Incorporating world class electrical components, T Power provides maintenance-free
operation throughout its life-span.
| STANDARD APPLICABLE | IEC 62271-202 |
| RATINGS | From 200 kVA Upto 2000 kVA |
| RATED VOLTAGE (MV/LV) | 11KV/415V |
| RATED CURRENT (MV/LV) | 630A/3200A |
| RATED POWER FREQUENCY WITHSTAND VOLTAGE | 28kV |
| RATED LIGHTING IMPULSE WITHSTAND VOLTAGE | 75kV |
| RATED SHORT TIME CURRENT RATING (MV/LV) | 21kA for 3 sec / 50kA for 1 sec |
| INGESS PROTECTION | IP 23 & IP 54 |
| TEMPRATURE CLASS | K10 |
| INTERNAL ARC | 21 kA (1s) |
| RMU TYPE | DV / CCV / V+M |
| TRANSFORMER TYPE / | OIL type – OCTC |
| COOLING | ONAN |
| MAXIMUM AMBIENT TEMPRATURE | 50°C |
- Fully factory assembled & tested
- Modular & compartmentalized
- Reinforced with specially designed ventilation system
- Completely safe for operators
- Ready for installation & network connection
- SCADA compatible & ready to use in smart grid
