Low Voltage Products

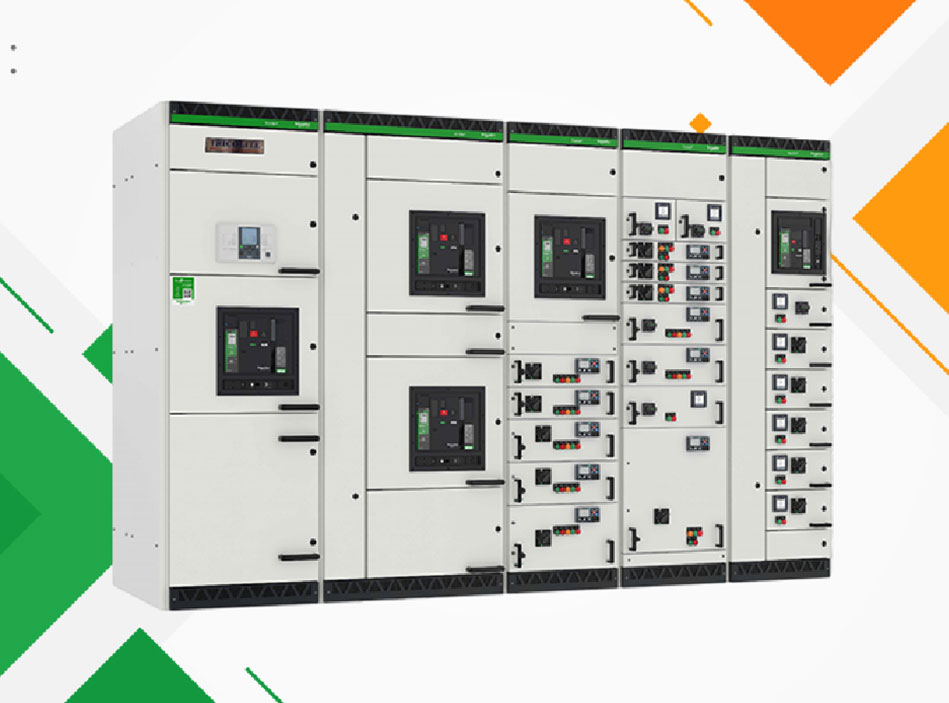

BlokSeT is a range of low voltage (LV) switchboards manufactured under licensed partnership model between Tricolite & Schneider Electric. BlokSeT switchboards are used for power distribution and motor control up to 7000A. They are modular, have a rated current of up to 6300 A and a rated insulation of 50 Hz. BlokSeT switchboards are highly safe and reliable, and have been type tested according to IEC61439-1 & 2 standards.

APPLICATION Protection & Control of Power Distribution
REFERENCE STANDARD IEC : 61439 -1 & 2
OPERATIONAL VOLTAGE 690 V
OPERATIONAL CURRENT Up to 4000 A for Single Bus Bar - Cu Up to 6300 A for Double Bus Bar - Cu Up to 5200 A - Al
PHASE/ FREQUENCY 3 Phase/ 50 Hz
SHORT TIME RATING 30/50/85 KA rms/sec for Single Bus Bar - Cu 100 KA rms/sec for Double Bus Bar - Cu 50 KA/65 KA rms/sec - Al
DEGREE OF PROTECTION IP:42 / IP:54
MAX. TEMP. RISE As per IEC 61439-13b/ 4b
RELATIVE HUMIDITY 95%
MATERIAL OF BUS BAR Copper/Aluminum
SPECIAL TEST Internal arc classified Seismic Compliance as per IEC 61641-V3
  • People safety
    Thermal monitoring/Internal arc containment and arc flash protection
  • Power availability
    Up to IP 54 protection degree for dusty and damp environments to ensure your continuous operation
  • Sustainability
    Green Premium product — non-hazardous material, designed for optimized recycling, and reduced carbon footprint and energy consumption.
